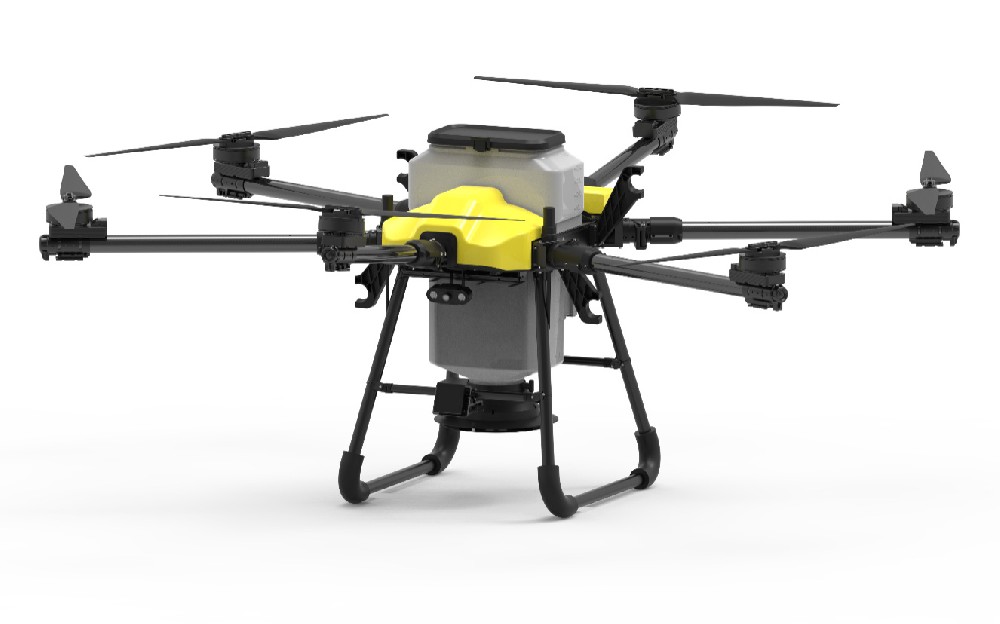

X6 Series Classic Agricultural Drones

X6-20 is a six-axis 16L upgraded version specially developed for large-scale land work. It adopts an embracing six-rotor folding, and is equipped with a suspended water tank battery. The center of the fuselage is connected and fixed, which effectively improves the overall frame strength. It is dust-proof and waterproof. Use 34 The inch power system is strong and powerful, and the whole body is lightweight design, which is easy to carry and work. Maximum payload volume 20L

Product wheelbase: 1700mm

Product size: 1963*1700*670mm (expanded)

1102*963*670mm (folded)

Product weight: 1.8kg (weight of 20L water tank)

7.5kg (frame weight)

16.6kg (the highest configuration, without battery)

22.5kg (including battery weight)

42.5kg (full load, take-off weight)

Arm size: 37*40mm

Medicine box volume: 20L

Spray width: 5~9 meters

Working efficiency: 100 mu/hour

Flight control: K++V2/V9 AG/ PALADIN

Remote control: H12/T12

Power system: X9 110kv (motor)

           120A (ESC)

           3411 (Propeller)

Spraying system: 5L water pump

(voltage: DC44-60.9V) pressure sprinkler

Battery: 12S 22000mAh

Hovering time: 18 minutes (no-load hovering 12S 22000mAh) 8 minutes (full-load hovering 12S 22000mAh)
