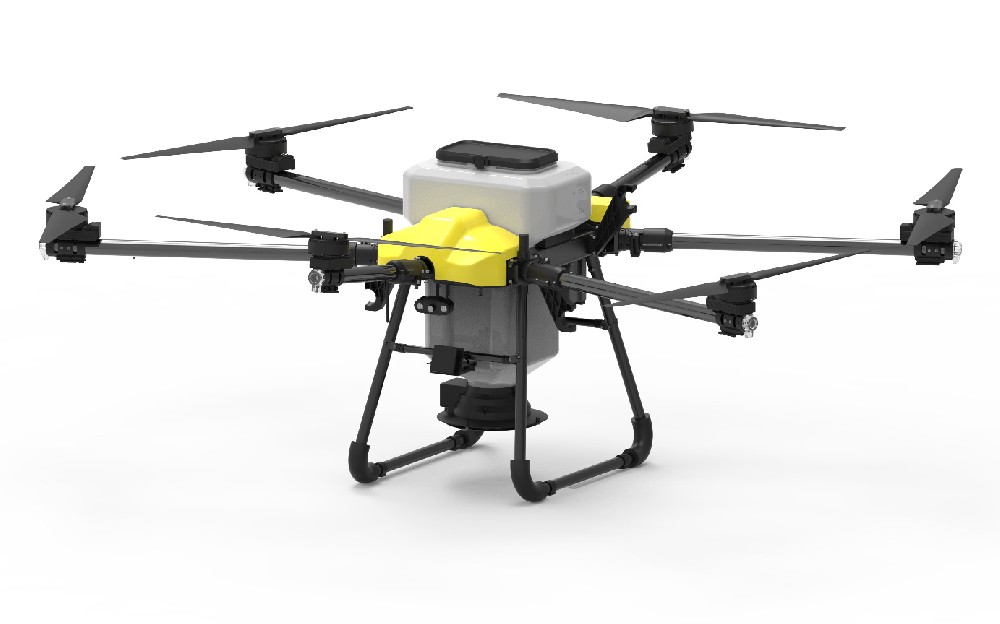

X6 Series Classic Agricultural Drones

X6-16 is specially developed for large-scale work. It adopts an encircling six-rotor folding, equipped with a suspended water tank battery, and the center of the fuselage is connected and fixed, which effectively improves the overall frame strength, dust-proof and waterproof, and uses a powerful 30-inch power system. , The whole body lightweight design, easy to carry operations. Maximum payload volume 16.8L

Product wheelbase: 1620mm

Product size: 1850*1620*670mm (expanded)

1020*920*670mm (folded)

Product weight: 1.5kg (weight of 20L water tank)

6.5kg (frame weight)

15kg (the highest configuration, without battery)

19.8kg (including battery weight)

35.8kg (full load, take-off weight)

Arm size: 37*40mm

Medicine box volume: 16L

Spray width: 5~8 meters

Working efficiency: 100 mu/hour

Flight control: K++V2/V9 AG/ PALADIN

Remote control: H12/T12

Power system: X8 100kv (motor)

           100A (ESC)

           3090 (Propeller)

Spraying system: 5L water pump

(voltage: DC44-60.9V)

              pressure sprinkler

Battery: 12S 22000mAh

Hovering time: 23 minutes (no-load hovering 12S 22000mAh) 10 minutes (full-load hovering 12S 22000mAh)
